What is 3E3M PP Filter Machine
“3E “refers to the 3E3M filter machine having three independent extruders. They are responsible for melting PP plastic particles at different temperatures to form melts with varying densities.
“3M refers to the three sets of molten materials upstream of the 3E3M filter machine, which are formed by three independent nozzle grinding tools.HT 3E3M PP Filter Machine is suitable for high-end precision markets in industries such as electroplating, prefiltration of purified water, and beverages.
When you have a sufficient budget and prefer the high-end market with extremely high requirements for filtration accuracy and lifespan, you can confidently choose the HT 3E3M PP Filter Machine. We will be dedicated to answering all your questions about it!
Advantages of HT 3E3M PP Filter Machine

The daily production capacity of the HT 3E3M PP filter machine is as high as 4800-5200 pieces, and the equipment has stable continuous operation ability, making it easy to cope with large order demands.

The filter cartridge produced by HT 3E3M PP filter has a tight internal and loose external fiber structure, which can significantly improve its pollutant retention capacity and extend its service life.

HT 3E3M PP filter machine is engineered to meet the rigorous demands of high-standard export and internationally recognized markets. For factories targeting global buyers, this machine guarantees reliable, repeatable quality batch after batch.

For raw water sources with high concentrations of sediment, turbidity, and complex pollutants, the products of the HT 3E3M PP filter machine capture pollutants from large to micro-sized particles. They have excellent interception ability and can ensure clear and stable effluent quality even under harsh, high-load water conditions.
High Profit Margin on Product Price
HT 3E3M PP filter machine is suitable for long-term, high-quality business with high selling price and high profit.Invest in 3E3M PP filter machine and enter the high-end segment of the filtration market. The high-performance filters it produces can be priced higher due to their longer lifespan and excellent efficiency. By transitioning from regular products to high-end production with quality assurance, customers can be attracted to sign long-term contracts, significantly increasing the profit margin per unit of product.


Product Brand OEM Logo Customization
The HT 3E3M PP filter machine is an ideal manufacturing equipment for producing high – end water purification filters and branded OEM products. Its capability to precisely control fiber diameter and layer structure enables the production of customized engineering filters to meet specific brand requirements for performance and lifespan.
More About HT 3E3M PP Filter Machine
- Equipment Parameter Table

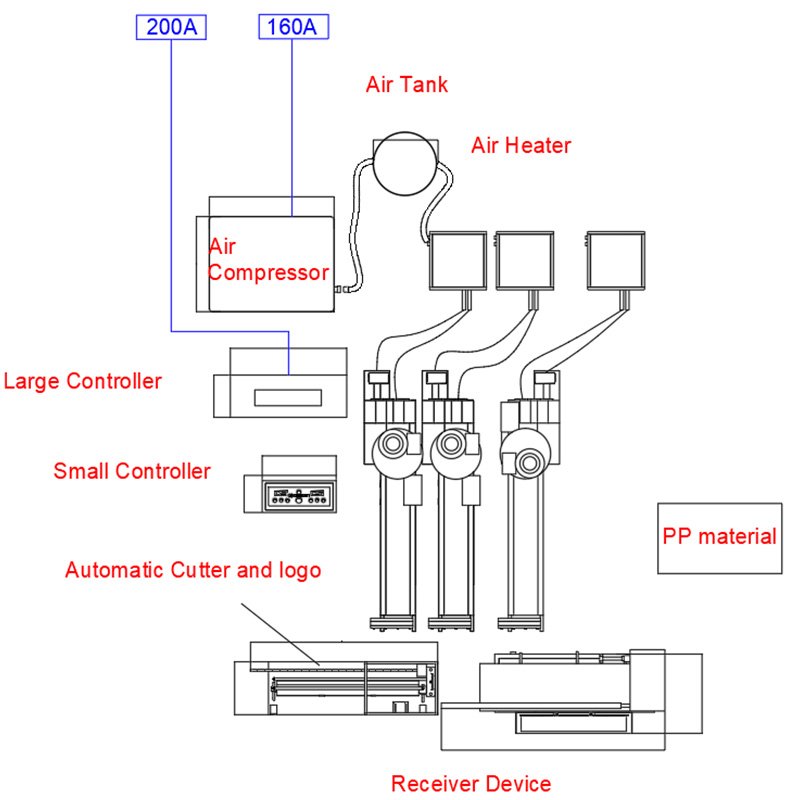

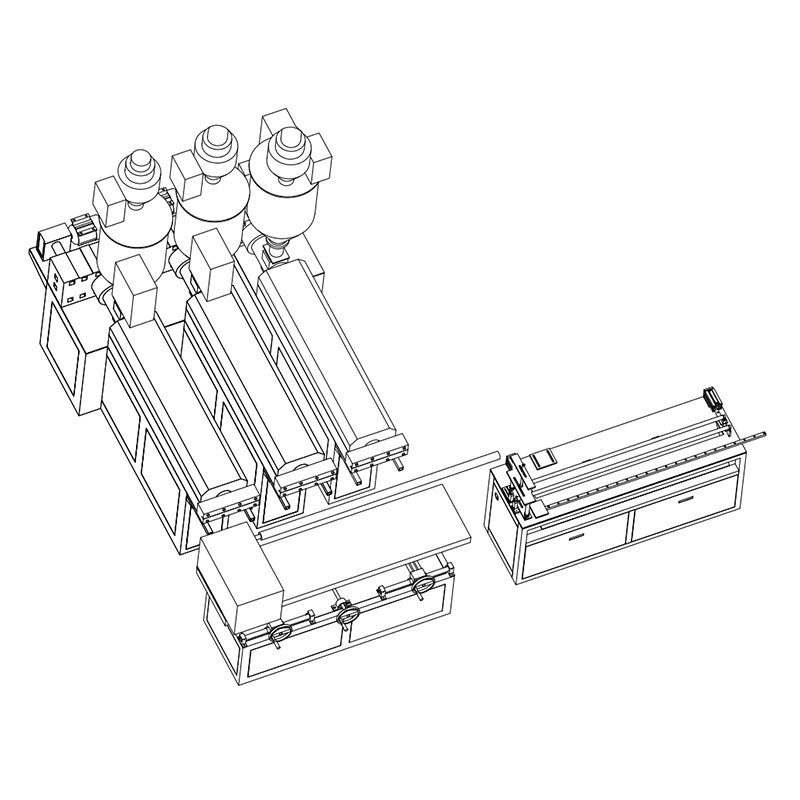

- Product Structure Diagram HT 3E3M PP Filter Machine
| Key Specs | 3E&3M Model(3extruders&3molds) |
| Total Power | 80KW |
| Actual Power | 40-45KW/H |
| Raw Material | PP (Polypropyiene) |
| 24H Output | 5000-5800pcs |
| Cartridge Weight | 70-200g (adjustabie) |
| Filter Precision | 1μm-100μm |
| Inner Diameter | 28mm (14-144mm custom) |
| Outer Diameter | 38-120mm (at 28mm ID) |
| Filter Length | 10″/20″/30″/40″.. |
| Voltage | AC380V/DC220V (customized) |
Related Product

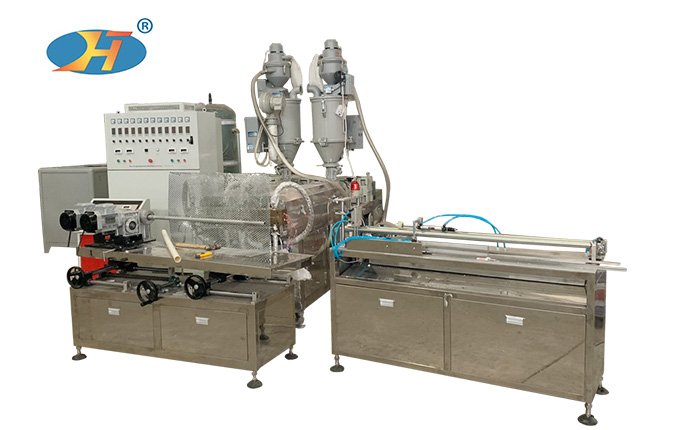

2E2M PP Filter Cartridge Machine
