The Working Steps Of The PP Melt-blown Filter Cartridge Machine

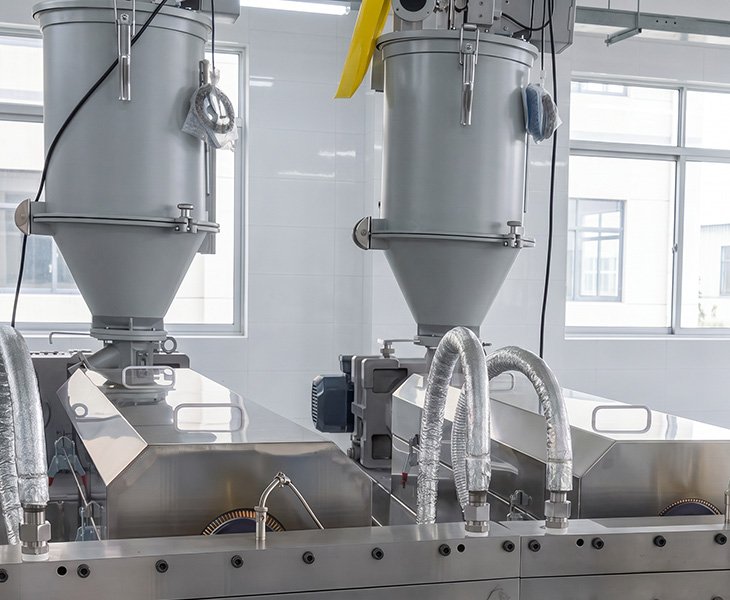

- High-temperature melting of raw materials in the PP Melt-blown Filter Cartridge Machine: PP is heated and melted by the main machine, ensuring a uniform melt for subsequent processing.

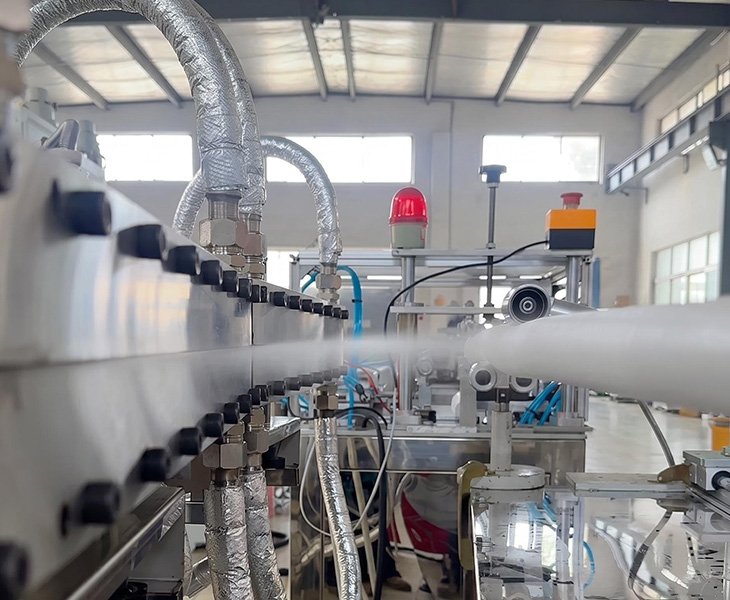

- Precision spinning with the mold: The PP material in the PP Melt-blown Filter Cartridge Machine is extruded through a precision spinneret and then drawn into ultra-fine fibers by hot air.

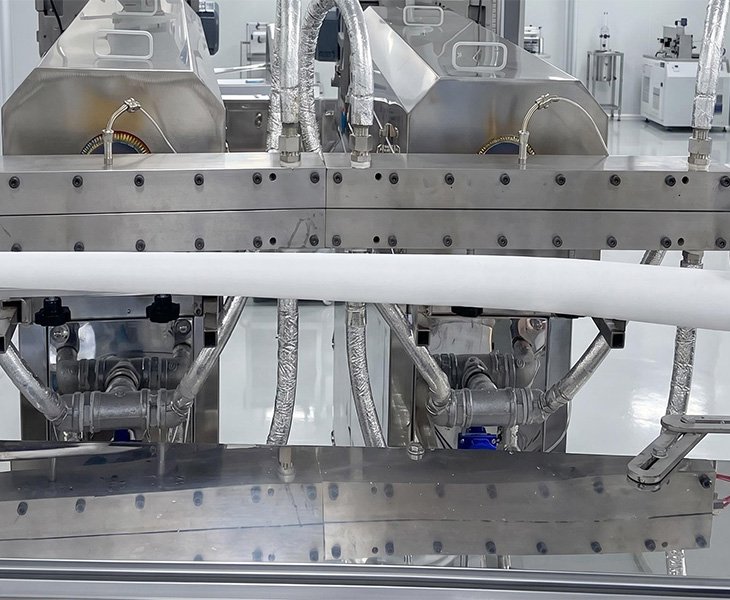

- Automatic receiving machine: Fibers are stacked together to form a microporous structure. After molding, the filtration performance and structural stability of the filter cartridge produced by the PP Melt-blown Filter Cartridge Machine have been significantly improved.

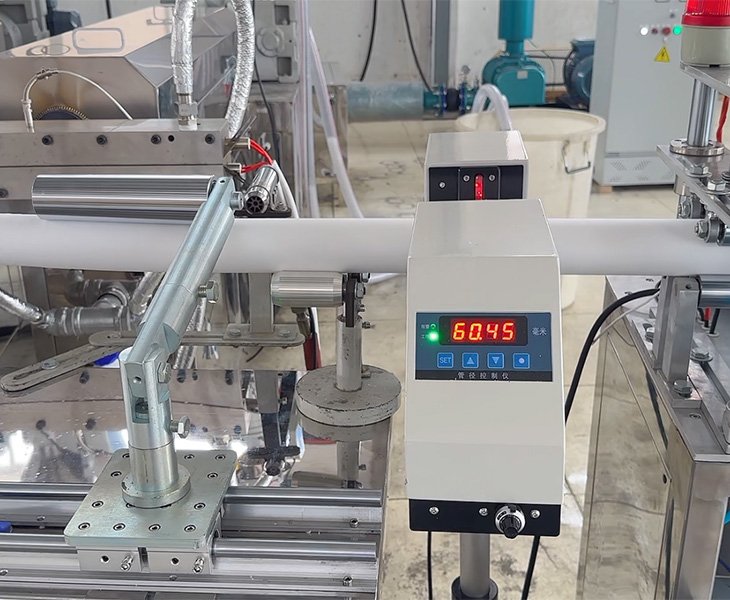

- Automatic diameter detection: After the PP Melt-blown Filter Cartridge Machine produces finished products, the diameter control instrument is used to ensure accurate and error-free product dimensions and to efficiently control the consistency and integrity of the finished products

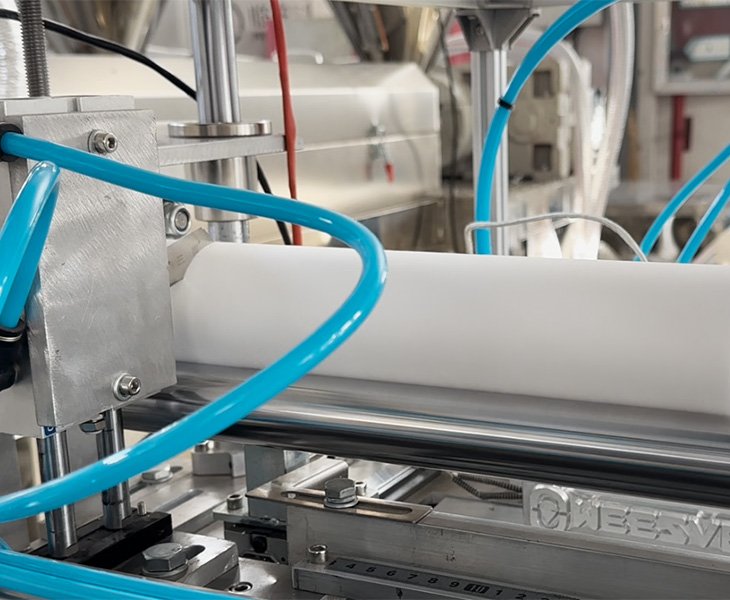

- Automatic cutting machine: The machine automatically completes the winding and cutting processes. HT PP Melt-blown Filter Cartridge Machine can produce 10-inch and 20-inch filter cartridges. Logo customization is also available upon request.
What is PP Melt-blown Filter Cartridge Machine
HT PP Melt-blown Filter Cartridge Machine can produce products with multiple specifications and filtration accuracies.The professional technical applications mainly include: drinking water purification, industrial water pretreatment, wastewater reuse, seawater desalination, industrial production filtration, food and beverage filtration, and pharmaceutical and medical filtration.
Book a one-on-one demo with our technical expert now, and see for yourself how the PP Melt-blown Filter Cartridge Machine delivers high-end gradient filter cartridges with exceptional stability!
Advantages of PP Melt-blown Filter Cartridge Machine
The HT PP melt-blown filter cartridge machine can produce 4500-5800 filter cartridges per day (depending on the model，3E3M or 2E2M), suitable for large-scale continuous production.
HT PP melt-blown filter cartridge machine features a high – quality electronic control system and a food-grade stainless steel casing. It is sturdy, durable, efficient, and energy-saving.
HT PP melt-blown filter cartridge machine features independently developed advanced technology and ultra – precision molds. The temperature control for material dissolution can reach ±1℃.
HT PP melt-blown filter cartridge machiner can produce various specifications of products, and the inner and outer diameters as well as filtration accuracy, can be flexibly adjusted according to customer needs
HT PP melt-blown filter cartridge machine has ISO/CE global standard certification, domestic utility model patents, and invention patents.
The qualification rate of products produced by the :HT PP melt-blown filter cartridge machine is as high as 99.5%.
Full Process Service and Quality Control Assurance
From factory debugging to production, and from product raw material selection to finished product packaging, :HT PP melt-blown filter cartridge machine achieves dual quality control from equipment to product through professional technical support, enhancing production efficiency and ensuring product quality.

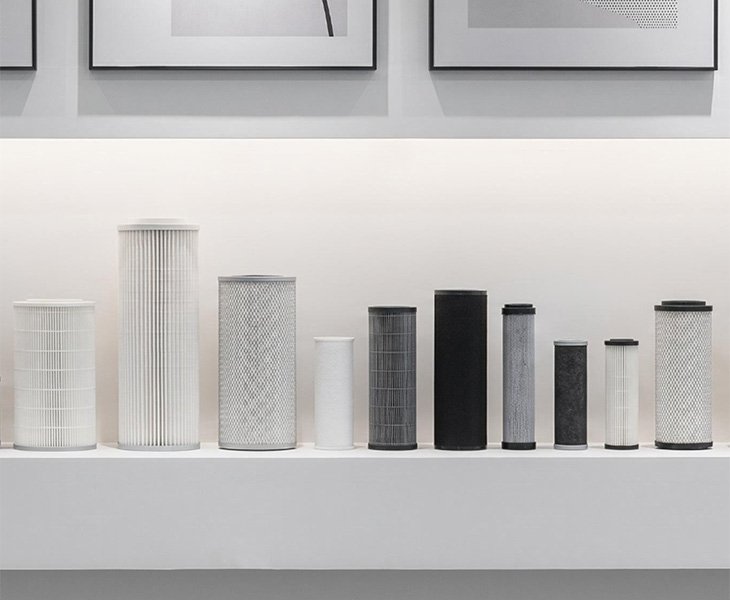

Professional Customization Capabilities
HT PP melt-blown filter cartridge machine can customize special-sized filter elements (shower filters, high-flow filters, etc.), research different materials (such as nylon), and develop functional filters (antibacterial filters, graphene filters, etc.)HT PP melt-blown filter cartridger machine is flexible and adjustable with multiple parameters, and can customize different specifications of products according to customer needs based on filtration accuracy (1 μ m-100 μ m), filter weight (70-200g), inner and outer diameters, and length.
Strict Quality Management
The comprehensive quality assurance of the entire process (procurement processing inspection delivery), HT PP melt-blown filter cartridge machine adopts imported ABB/Omron core components, and passes continuous 48 hour equipment endurance and production capacity testing to ensure strong production stability of the equipment.

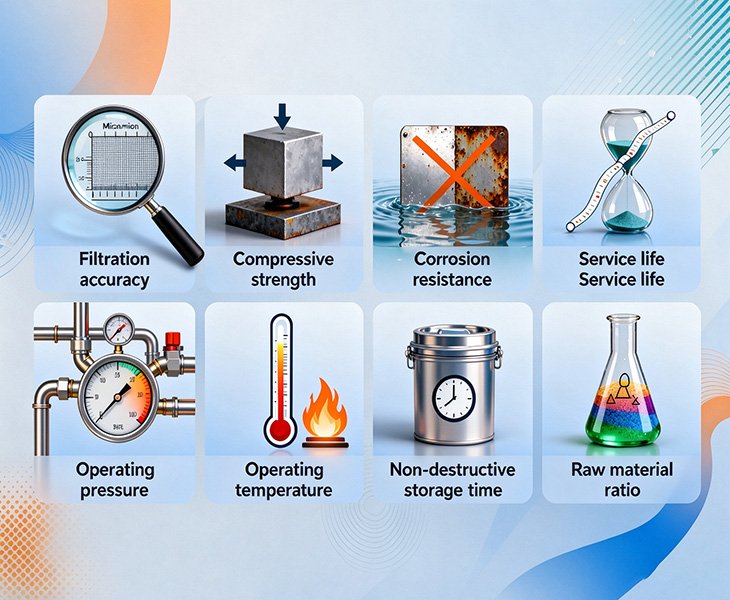

We combine our own testing laboratory with cooperative testing companies to conduct comprehensive testing of cartridges. Testing parameters include:
– Filtration accuracy
– Compressive strength
– Corrosion resistance
– Service life
– Operating pressure
– Operating temperature
– Non-destructive storage time
– Raw material ratio
Our Corporate Edge in Product Solutions
Our experts will consider factors such as production volume, product specifications, and material characteristics to ensure that the HT PP melt – blown filter cartridge machine achieves the best match for your production requirements right from the start.

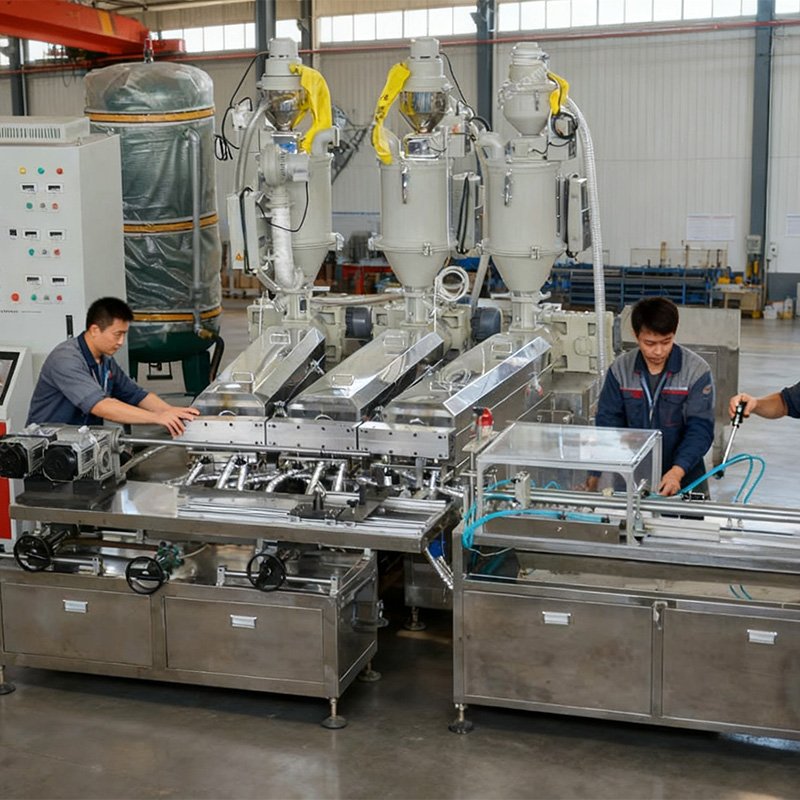

Our professional technicians offer comprehensive guidance on the installation process of the HT PP melt – blown filter cartridge machine in your factory. We calibrate and test each system component to ensure smooth operation and seamless integration with your existing production line.
We offer customized practical training courses tailored to the skill level of your team. This includes proper machine operation, daily maintenance procedures, and basic troubleshooting for the HTPP melt – blown filter cartridge machine, enabling your employees to achieve consistent, high – quality output.

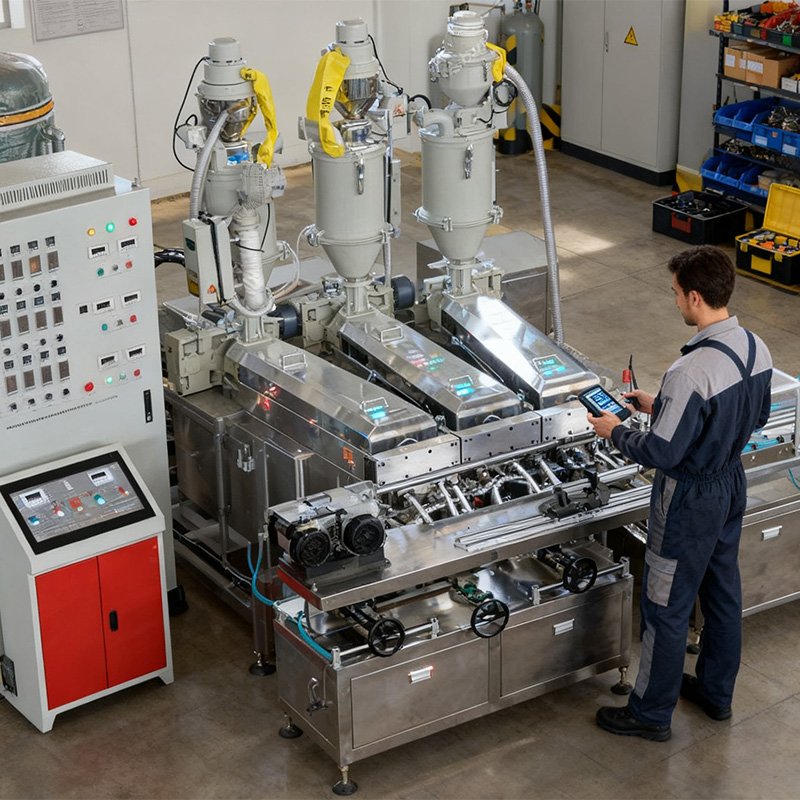

We provide customized maintenance plans based on your production intensity and usage of the HTPP melt – blown filter cartridge machine. This includes regular inspections, timely supply of original spare parts, and continuous technical support to minimize downtime and extend the machine’s lifespan.

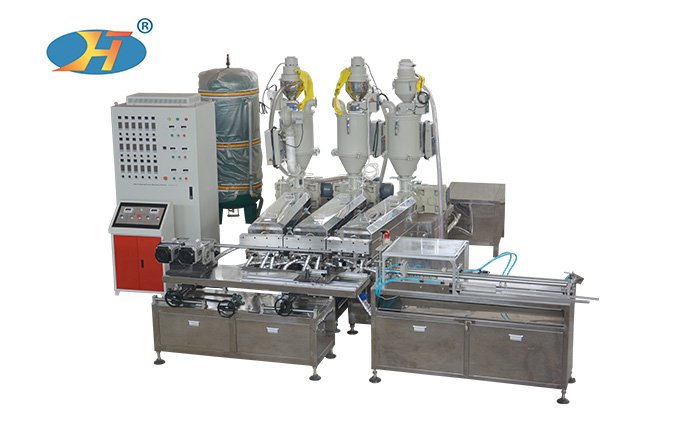

More About HT PP Melt-blown Filter Cartridge Machine
- Equipment Parameter Table
| Key Specs | 2E&2M Model | 3E&3M Model |
| Total Power | 52KW | 80KW |
| Actual Power | 28-32KW/H | 40-45KW/H |
| Raw Material | PP (Polypropyiene) | PP (Polypropyiene) |
| 24H Output | 3500-4200pcs | 5000-5800pcs |
| Cartridge Weight | 70-200g (adjustabie) | 70-200g (adjustabie) |
There are 2 differences. 1st one is that their production capacities are different; the 3E3M system’s production capacity is higher. The second is that the 2E2M system can make 2 layers of PP filter, and the 3E3M system can produce 3 layers of PP filter.
Yes, of course, our engineers can speak English, and have been to 42 Countries for installing and commissioning.
Yes. This machine can make different diameters, different lengths, and different micron sizes for different kinds of filtration.
We supply a complete production line. You just need to prepare PP raw material and electric power at your factory. Pls note that the factory height should be higher than 3m.
Related Product
3E3M PP Filter Cartridge Machine

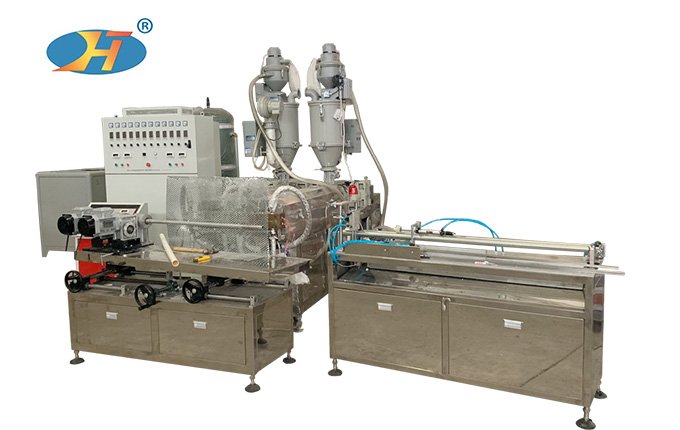

2E2M PP Filter Cartridge Machine
CTO Carbon Block Filter Cartridge Machine

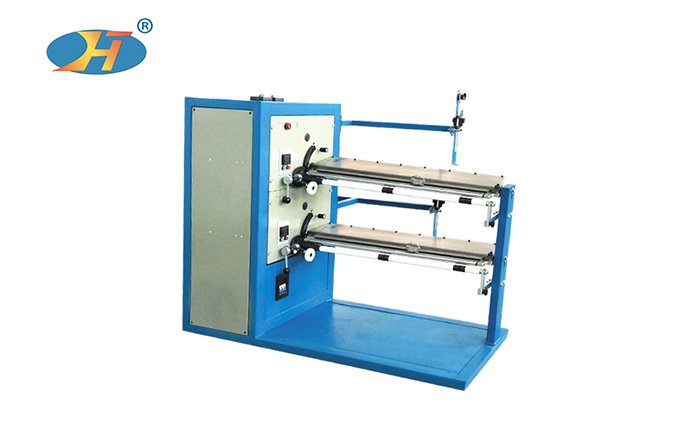

PP Winding Filter Cartridge Machine
