The Working Steps Of HT Filter Winding Machine
- Simple & fast loading

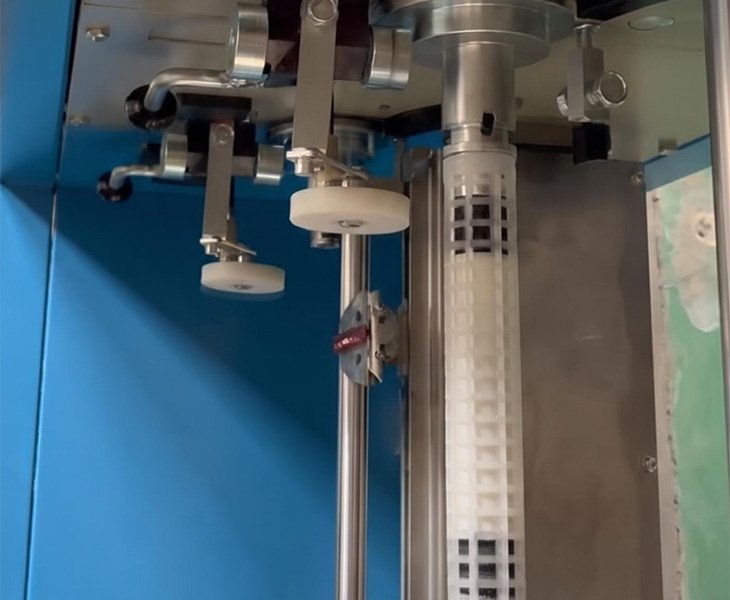

HT filter winding machine gets you ready in seconds- you just place the filter frame (PP/stainless steel, any size you need) onto the take-up rod and lock it. - Fully automatic winding

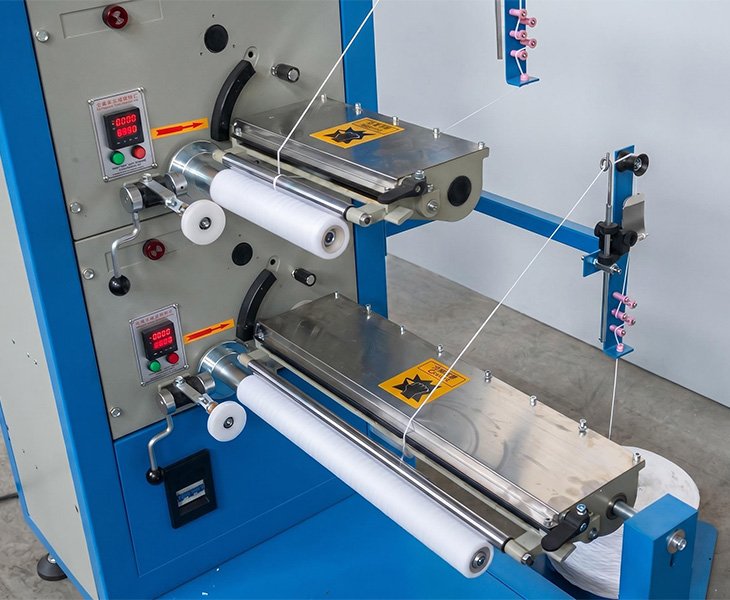

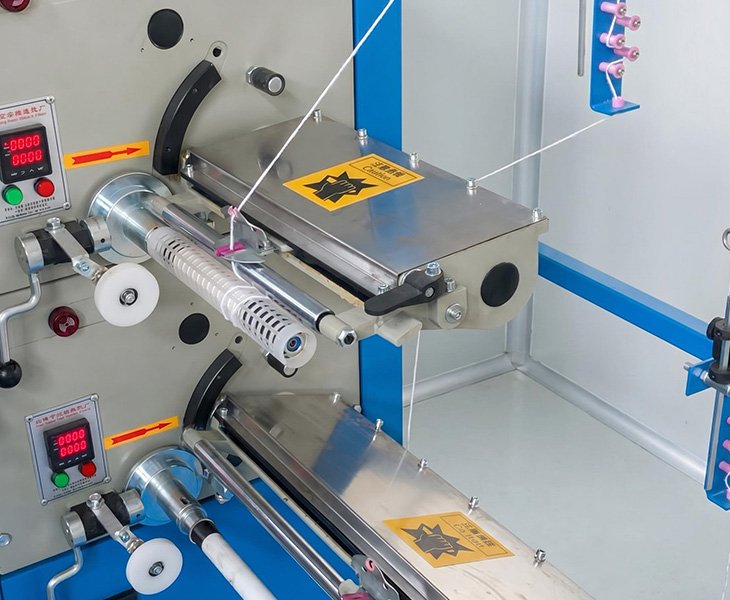

Once started, the HT filter winding machine runs precisely. The yarn is automatically wound layer by layer according to the preset parameters, and there is no manual intervention throughout the process. - Precision on demand
By simply adjusting the winding speed vs. traverse speed ratio on the HT filter winding machine, you get stable, repeatable density control. From 1μm to 100μm filtration rating-same accuracy, every batch. - Simple & fast Cutting

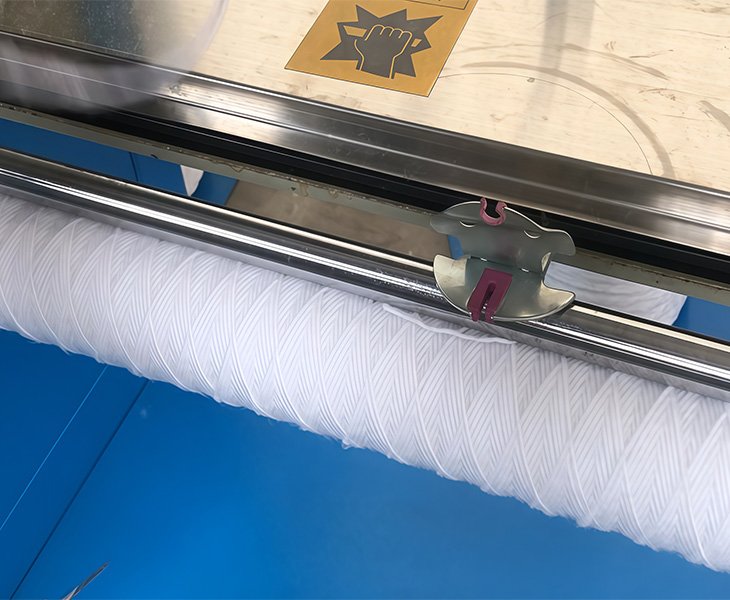

After winding is completed, the HT filter winding machine will sound an alarm to prompt you to cut off the yarn’s tail end and remove the filter cartridge. The entire operation can be completed within seconds.
What is HT Filter Winding Machine ?
With 35 years of industry experience, HT has provided solutions to over 2,000 customers in more than 50 countries. 20% of these customers choose to purchase a carbon block filter machine together with a capping machine to meet high-end market demand.
The HT filter winding machine is a specialized production line for wound filter cartridges.
We achieve “consistent pore size” through precise control, which addresses issues such as uneven filtration, early clogging, or rejected batches. As a result, the filtering effect becomes predictable.
We offer you a system in which one operator can run multiple machines. It can help you save more than 70% of labor costs.
We will provide you with a fully automated process customization solution that helps you save costs and bid farewell to traditional, inefficient yarn winding. Please inquire now for more details!
Why Choose HT Filter Winding Machine
After fixing the yarn and the filter frame, the equipment automatically completes yarn feeding, orderly winding, and cutting. The entire process is standardized, and the finished product quality is controllable.
The reason why the HT filter winding machine can produce high-quality filter cartridges is the precise control.Therefore, the product has even and tight features.
The application areas of products produced by the HT filter winding machine include purified water, beverages, food, the chemical industry, lubricating oil, pharmaceuticals, electronics, environmental protection, etc.
HT filter winding machine effectively reduces yarn waste caused by broken threads, knots, and uneven stretching, achieving a yarn utilization rate of over 98%.

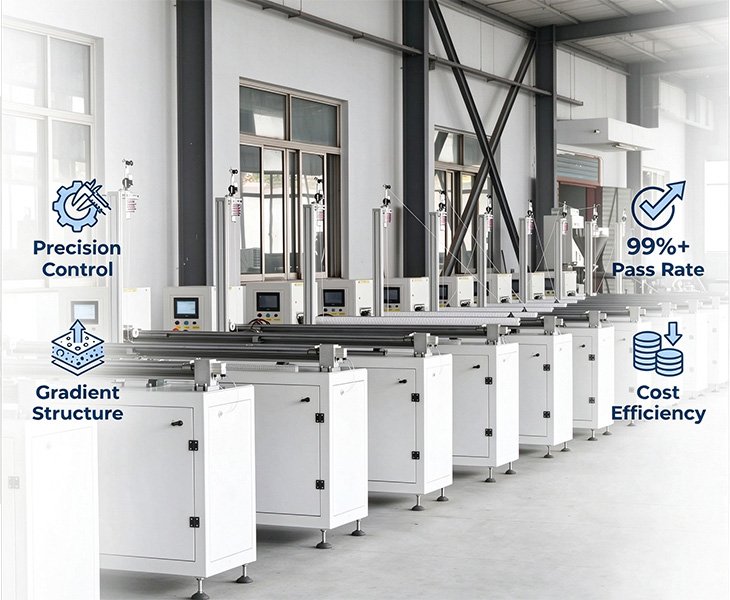

Precision Winding and Filtration Accuracy Control
Traditional winding methods have uneven pore distribution, which cause inconsistent filtration and high scrap rates.
The HT filter winding machine solves the problems through precise electronic control, creating a perfect gradient pore structure. Therefore, the filter cartridge has a consistent pore diameter along its entire body, and the pass rate is up to 99%.
For you, that means less waste, lower production costs, and excellent filter quality that helps you become the leader in the water – treatment industry.

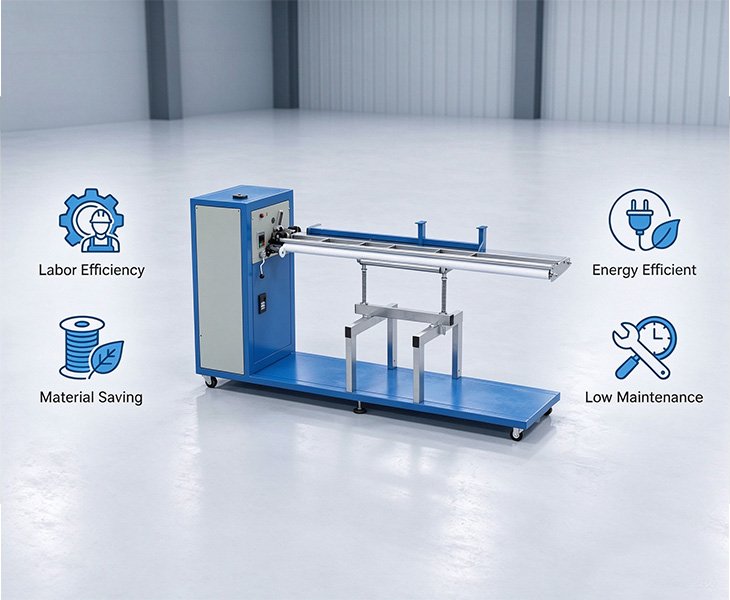

Comprehensive Cost Control Advantage
Cut your filter production costs with the HT filter winding machine. One operator can operate multiple machines, greatly reducing the labor cost per filter. Our precise system guarantees even winding and higher yarn utilization. Thus, yarn waste can be avoided. The high – efficiency system can save up to 20% on electricity. Wear – resistant parts lead to longer maintenance intervals and lower maintenance costs.
HT filter winding machine will assist you in achieving lower total costs, longer running time, and faster return on investment (ROI) with consistent high quality and excellent service.
More About HT Filter Winding Machine
- Equipment Parameter Table
| Key Specs | HT string wound filter machine |
| Winding speed | 60~320m/min |
| Power supply | AC380,50Hz,Other Voltage can be customized. |
| Power of machine | 10inch 0.18kw/20inch 0.25kw/30inch 0.5kw/40inch 0.5kw.etc |
| Core’s Material | PP core,Stainless steel core…etc, on client’s request. |
| Material of Cam | polyformaldehyde. |
| Inner Diameter | 28mm and 30mm, other diameter can becustomized |
| Outer Diameter | 29mm~200mm. |
| Max.Outer diameter | 200mm, |
| Micron of filter cartridge | 1um,5um,10um,20um,50um,100um.etc |
| Length | 10inch,20inch,30inch,40inch…100″.(Anyother length could be customized). |
About 25 days.
One worker can operate 2-3 machines.
Of course, we provide comprehensive services from packaging to operation to ensure that all of our machines can run normally.
Both machines can make different outer diameters from 40mm to 150mm. There is a sensor that will control the outer diameter of the winding filter cartridge.
We supply a 1-year warranty for the motor. If it breaks without human intervention, we will replace it free of charge.
Related Product

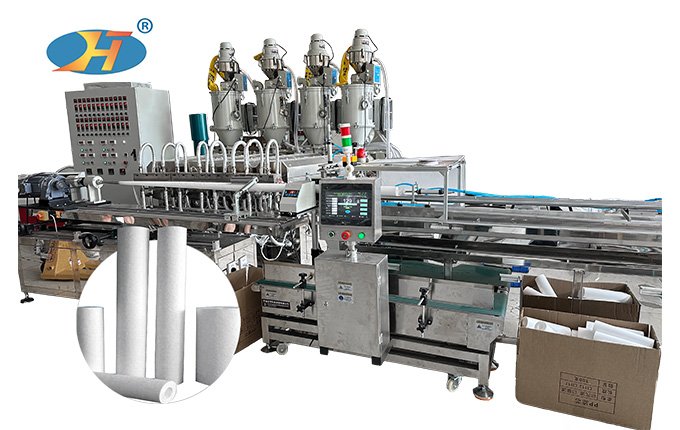

PP Melt-blown Filter Catridge Machine

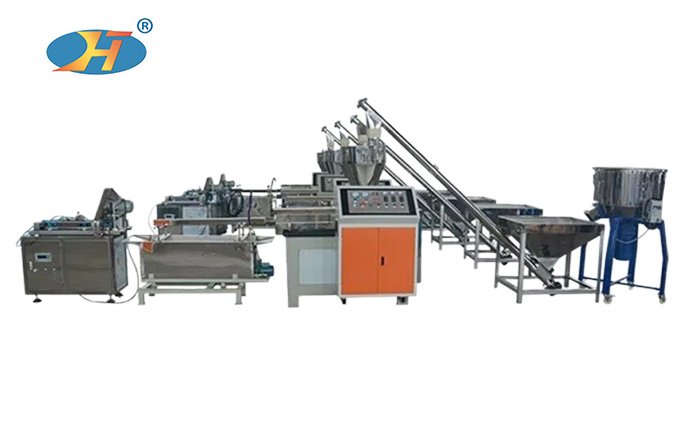

Carbon Block Water Filter Machine

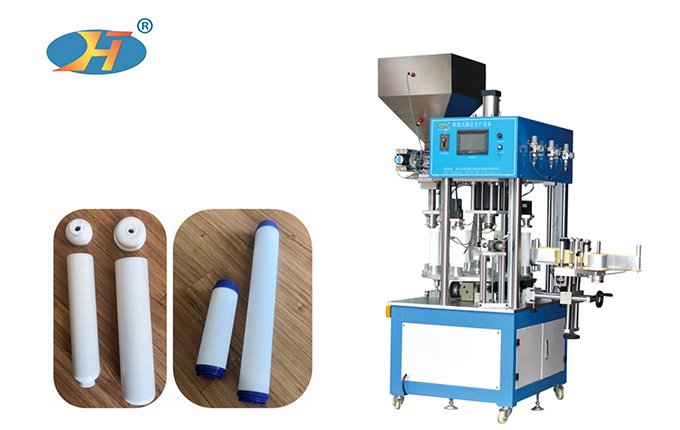

Auto GAC/DUF/T33 Machine

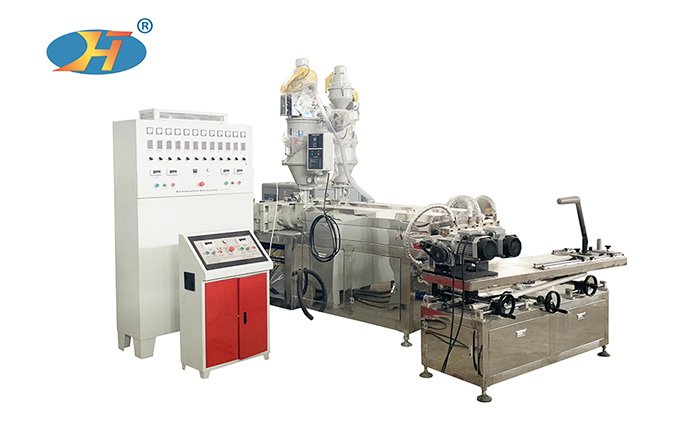

Spun Filter Production Line

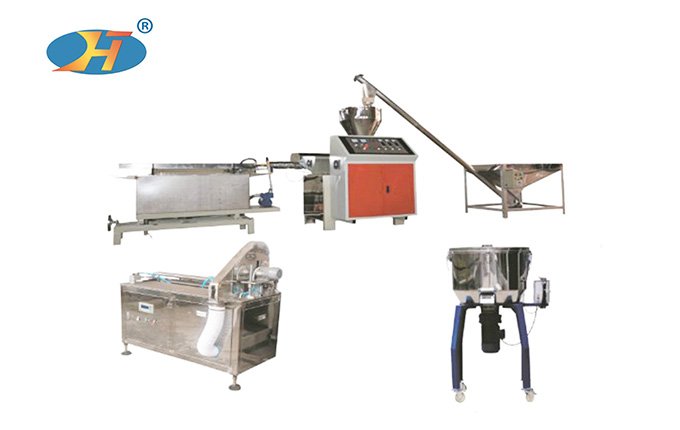

Water Filter Machine
